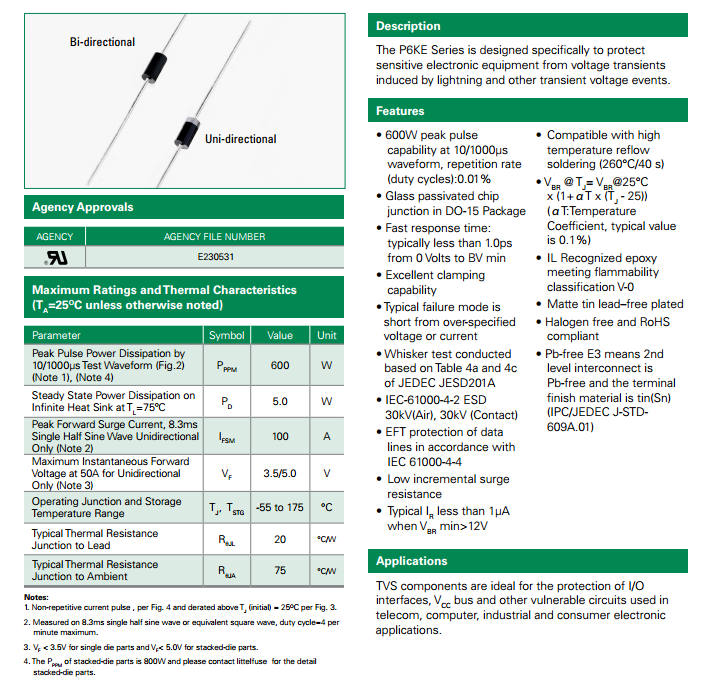

P6KE510A      Transient Voltage Suppression Diodes

Axial Leaded – 600W > P6KE series

ESD 抑制器/TVS 二极管 434Vr 600W 0.9A 5% Uni-Directional

Description  P6KE510A

The P6KE Series is designed specifically to protect

sensitive electronic equipment from voltage transients

induced by lightning and other transient voltage events.

Features  P6KE510A

• 600W peak pulse

capability at 10/1000μs

waveform, repetition rate

(duty cycles):0.01%

• Glass passivated chip

junction in DO-15 Package

• Fast response time:

typically less than 1.0ps

from 0 Volts to BV min

• Excellent clamping

capability

• Typical failure mode is

short from over-specified

voltage or current

• Whisker test conducted

based on Table 4a and 4c

of JEDEC JESD201A

• IEC-61000-4-2 ESD

30kV(Air), 30kV (Contact)

• EFT protection of data

lines in accordance with

IEC 61000-4-4

• Low incremental surge

resistance

• Typical IR less than 1μA

when VBR min>12V

• Compatible with high

temperature reflow

soldering (260°C/40 s)

• VBR @ TJ

= VBR@25°C

x (1+αT x (TJ

 - 25))

(αT:Temperature

Coefficient, typical value

is 0.1%)

• IL Recognized epoxy

meeting flammability

classification V-0

• Matte tin lead–free plated

• Halogen free and RoHS

compliant

• Pb-free E3 means 2nd

level interconnect is

Pb-free and the terminal

finish material is tin(Sn)

(IPC/JEDEC J-STD-

609A.01)

Applications  P6KE510A

TVS components are ideal for the protection of I/O

interfaces, VCC bus and other vulnerable circuits used in

telecom, computer, industrial and consumer electronic

applications.
