5KP75A

ESD 抑制器/TVS 二极管 75Vso 58VAC 41A

Axial Leaded – 5 kW > 5KP series

The 5KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features 5KP75A

• 5 kW peak pulse

capability at 10/1000μs

waveform, repetition rate

(duty cycles):0.01%

• Glass passivated chip

junction in P600 package

• Fast response time:

typically less than 1.0ps

from 0 Volts to BV min

• Excellent clamping

capability

• Typical failure mode is

short from over-specified

voltage or current

• Whisker test is conducted

based on JEDEC

JESD201A per its table 4a

and 4c

• IEC 61000-4-2 ESD

30kV(Air), 30kV (Contact)

• EFT protection of data

lines in accordance with

IEC 61000-4-4

• Low incremental surge

resistance

• Typical IR less than 2μA

when VBR min>12V

• High temperature

to reflow soldering

guaranteed: 260°C/40sec

/ 0.375”, (9.5mm) lead

length, 5 lbs., (2.3kg)

tension

• VBR @ TJ

= VBR@25°C

x (1+αT x (TJ

- 25))

(αT:Temperature

Coefficient, typical value

is 0.1%)

• UL Recognized compound

meeting flammability

rating V-0

• Matte tin lead–free plated

• Halogen free and RoHS

compliant

• Pb-free E3 indicates that

2nd level interconnect is

Pb-free and the terminal

finish material is tin(Sn)

(IPC/JEDEC J-STD-

609A.01)

TVS componants are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

型号: 5KP75A

产品种类: ESD 抑制器/TVS 二极管

RoHS:  无铅环保

系列: 5KP

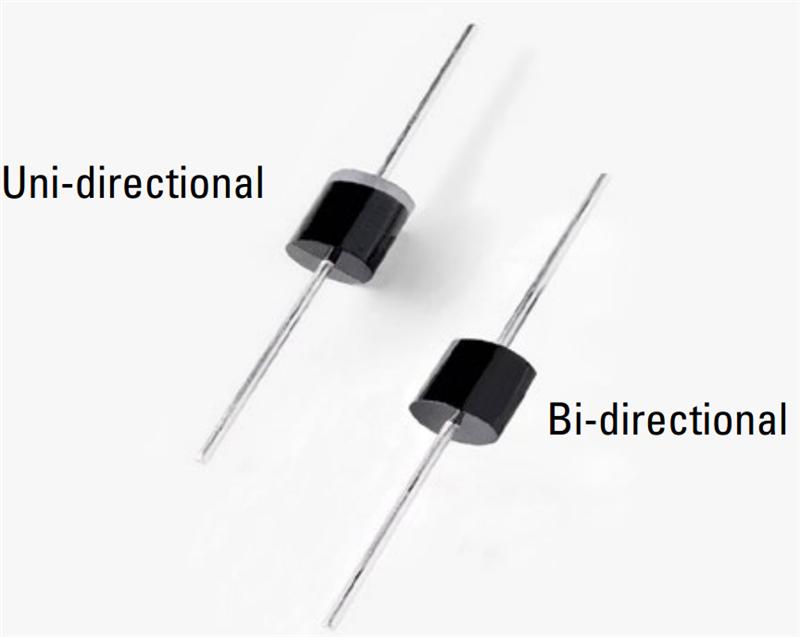

极性: Unidirectional

端接类型: Axial

击穿电压: 92.1 V

工作电压: 75 V

钳位电压: 121 V

Ipp - 峰值脉冲电流: 42.1 A

封装 / 箱体: P600-2

Pd-功率耗散: 5 kW

工作温度: - 55 ℃

工作温度: + 175 ℃

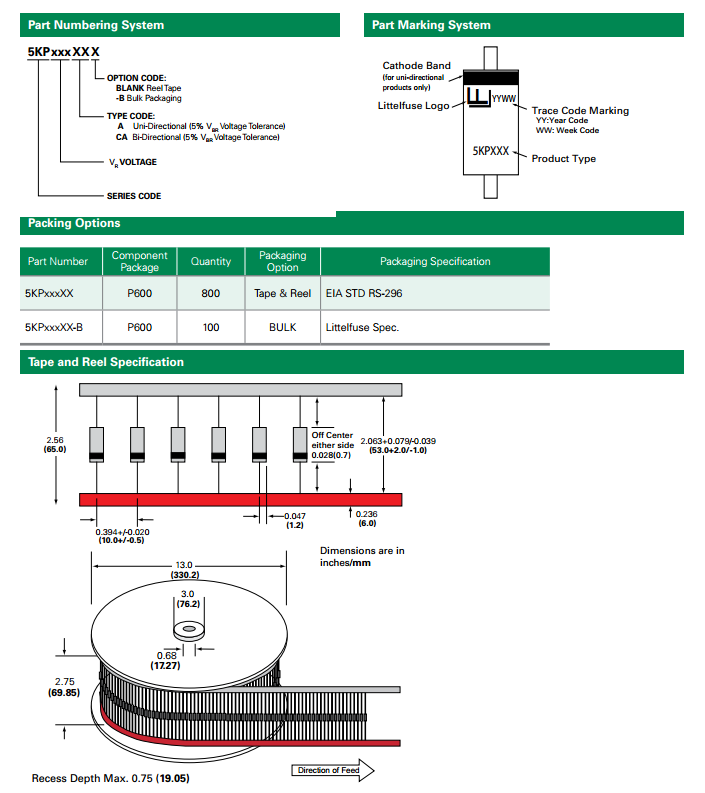

封装: Cut Tape

封装: Reel

商标: Littelfuse

产品类型: TVS Diodes / ESD Suppression Diodes

工厂包装数量: 800

子类别: TVS Diodes / ESD Suppression Diodes

单位重量: 2.100 g
