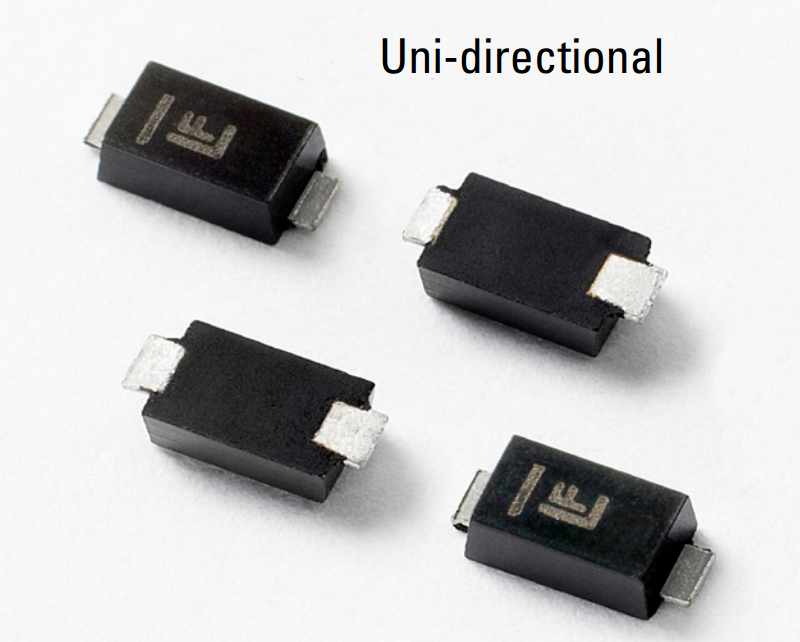

SMF15A   Transient Voltage Suppression Diodes

ESD 抑制器/TVS 二极管 15V 200W 8.2A 5% Unidirectional

Surface Mount – 200W > SMF Series

型号: SMF15A

制造商: Littelfuse

产品种类: ESD 抑制器/TVS 二极管

RoHS:  无铅环保

系列: SMF

极性: Unidirectional

端接类型: SMD/SMT

击穿电压: 18.5 V

钳位电压: 24.4 V

Ipp - 峰值脉冲电流: 8.2 A

封装 / 箱体: SOD-123FL-2

Pd-功率耗散: 200 W

工作温度: - 55 ℃

工作温度: + 150 ℃

封装: Cut Tape

封装: Reel

商标: Littelfuse

产品类型: TVS Diodes / ESD Suppression Diodes

工厂包装数量: 3000

子类别: TVS Diodes / ESD Suppression Diodes

The SMF15A SMF series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SMF package is 50% smaller in footprint when compare to SMA package and deliverying one of the low height profiles (1.1mm) in the industry.

Applications SMF15A

SMF devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuit used in cellular phones, portable devices, business machines, power supplies and other consumer applications.
