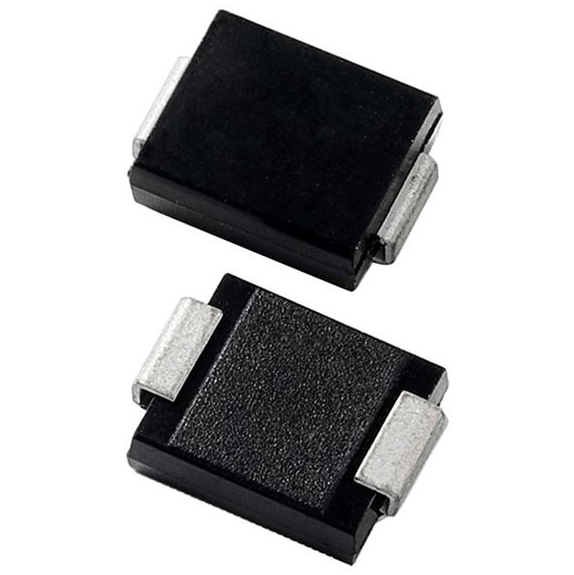

5.0SMDJ75CA    Transient Voltage Suppression Diodes

ESD 抑制器/TVS 二极管 75V 5KW 5% BI DO-214AB

Surface Mount – 5000W > 5.0SMDJ series

The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Features 5.0SMDJ75CA

• 5000W peak pulse power

capability at 10/1000μs

waveform, repetition rate

(duty cycles):0.01%

• For surface mounted

applications to optimize

board space

• Low profile package

• Typical failure mode is

short from over-specified

voltage or current

• Whisker test is conducted

based on JEDEC

JESD201A per its table 4a

and 4c

• IEC-61000-4-2 ESD

30kV(Air), 30kV (Contact)

• ESD protection of data

lines in accordance with

IEC 61000-4-2

• EFT protection of data

lines in accordance with

IEC 61000-4-4

• Built-in strain relief

• Glass passivated chip

junction

• Fast response time:

typically less than 1.0ps

from 0V to BV min

• Excellent clamping

capability

• Low incremental surge

resistance

• Typical IR less than 5μA

when VBR min>22V

• High temperature

to reflow soldering

guaranteed: 260°C/40sec

• VBR @ TJ

= VBR@25°C

x (1+αT x (TJ

- 25))

(αT:Temperature

Coefficient, typical value

is 0.1%)

• Plastic package is

flammability rated V-0 per

Underwriters Laboratories

• Meet MSL level1, per

J-STD-020, LF maximun

peak of 260°C

• Matte tin lead–free plated

• Halogen free and RoHS

compliant

• Pb-free E3 means 2nd

level interconnect is

Pb-free and the terminal

finish material is tin(Sn)

(IPC/JEDEC J-STD-

609A.01)
