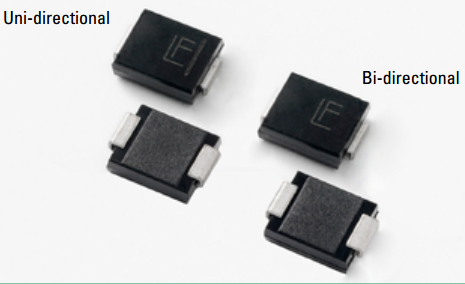

SMCJ18CA
ESD 抑制器/TVS 二极管 18Vr 1500W 51.4A 5% BiDirectional
Description SMCJ18CA
The SMCJ series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Applications SMCJ18CA
TVS devices are ideal for the protection of I/O Interfaces,
VCC bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
Features SMCJ18CA
• 1500W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical IR less than 1μA
when VBR min>12V
• For surface mounted
applications to optimize
board space
• Low profile package
• Built-in strain relief
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• Glass passivated chip
junction
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• VBR @ TJ
= VBR@25°C
x (1+αT x (TJ
- 25))
(αT:Temperature
Coefficient, typical value
is 0.1%)
