SMTAK3-076C      TVS Diodes

Surface Mount – 3kA > SMTAK3 Series

ESD 抑制器/TVS 二极管 TVS SURF MT KA RATED - 3KA 76V BI

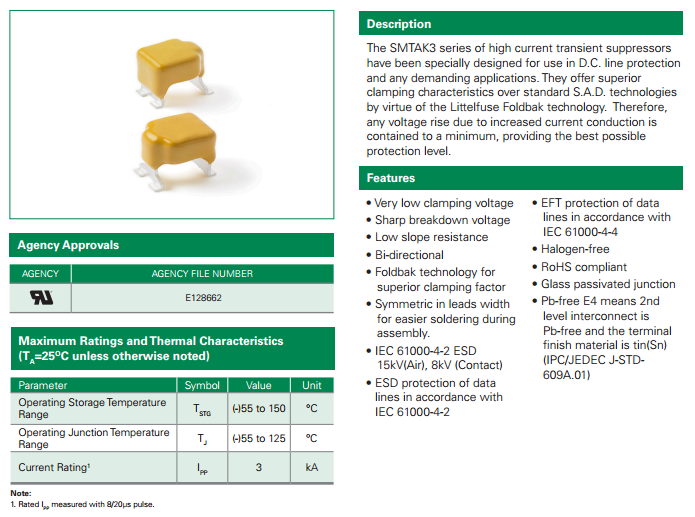

Description   SMTAK3-076C

The SMTAK3-076C  SMTAK3 series of high current transient suppressors

have been specially designed for use in D.C. line protection

and any demanding applications. They offer superior

clamping characteristics over standard S.A.D. technologies

by virtue of the Littelfuse Foldbak technology. Therefore,

any voltage rise due to increased current conduction is

contained to a minimum, providing the best possible

protection level.

Features  SMTAK3-076C

• Very low clamping voltage

• Sharp breakdown voltage

• Low slope resistance

• Bi-directional

• Foldbak technology for

superior clamping factor

• Symmetric in leads width

for easier soldering during

assembly.

• IEC 61000-4-2 ESD

15kV(Air), 8kV (Contact)

• ESD protection of data

lines in accordance with

IEC 61000-4-2

• EFT protection of data

lines in accordance with

IEC 61000-4-4

• Halogen-free

• RoHS compliant

• Glass passivated junction

• Pb-free E4 means 2nd

level interconnect is

Pb-free and the terminal

finish material is tin(Sn)

(IPC/JEDEC J-STD-

609A.01)
