046601.5NR

表面贴装式保险丝 63V 1.5A VFA Slimline

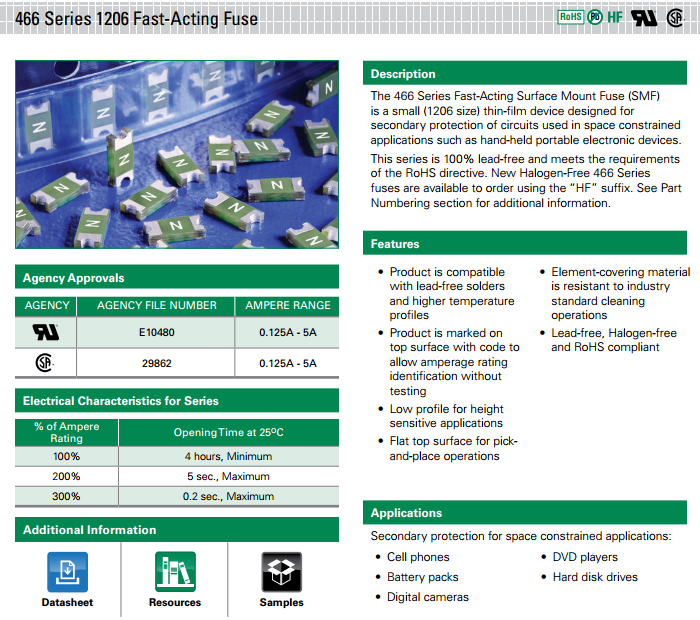

The 466 046601.5NR Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices. This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 466 Series fuses are available to order using the “HF” suffix. See Part Numbering section for additional information.

• Product is compatible with lead-free solders and higher temperature profiles

• Product is marked on top surface with code to allow amperage rating identification without testing

• Low profile for height sensitive applications

• Flat top surface for pickand-place operations

• Element-covering material is resistant to industry standard cleaning operations

• Lead-free, Halogen-free and RoHS compliant

046601.5NR Applications

Secondary protection for space constrained applications:

• Cell phones

• Battery packs

• Digital cameras

• DVD players

• Hard disk drives

Reflow Condition    Pb – free assembly

Pre Heat

- Temperature Min (Ts(min)) 150°C

- Temperature Max (Ts(max)) 200°C

- Time (Min to Max) (ts) 60 – 180 seconds

Average Ramp-up Rate (Liquidus Temp (TL) to peak) 5°C/second max.

TS(max) to TL - Ramp-up Rate 5°C/second max.

Reflow

- Temperature (TL) (Liquidus) 217°C

- Temperature (tL) 60 – 150 seconds

Peak Temperature (TP) 260+0/-5 °C

Time within 5°C of actual peak Temperature (tp)  20 – 40 seconds

Ramp-down Rate 5°C/second max.

Time 25°C to peak Temperature (TP) 8 minutes max.

Do not exceed 260°C
