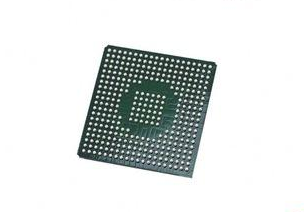

P1010NSN5HHB

微处理器 - MPU 32-Bit 800 MHz Trusted Boot Rev 1

QorIQ P1010/P1014 Reference Design Board

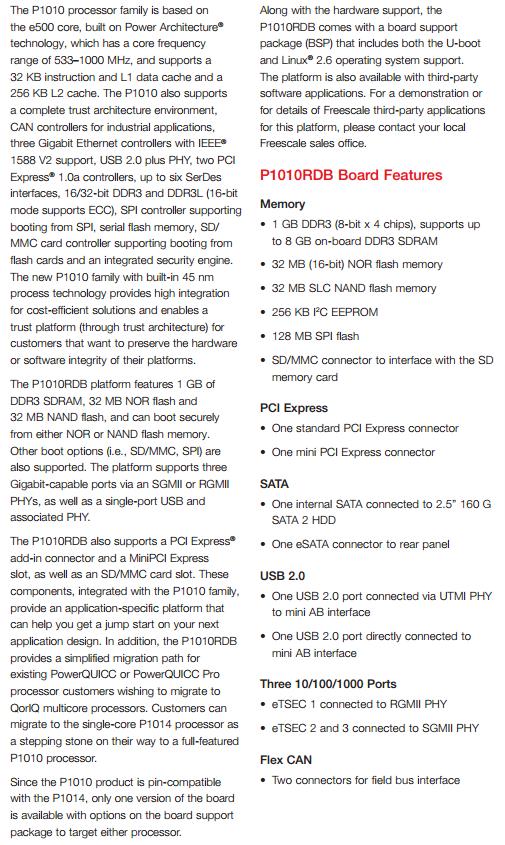

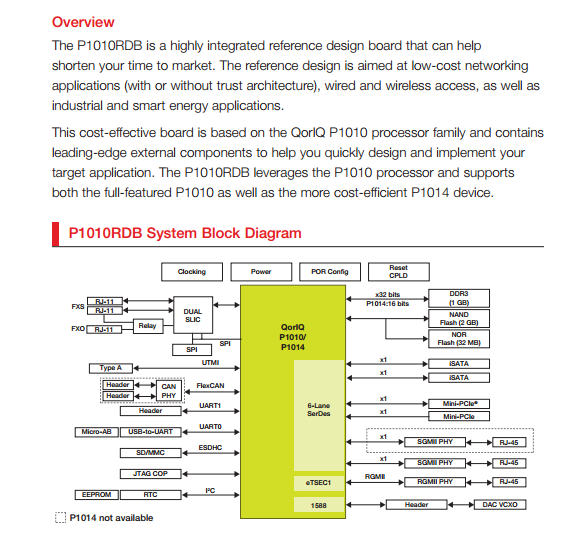

Overview P1010NSN5HHB

The P1010RDB is a highly integrated reference design board that can help shorten your time to market. The reference design is aimed at low-cost networking applications (with or without trust architecture), wired and wireless access, as well as industrial and smart energy applications.

Memory

• 1 GB DDR3 (8-bit x 4 chips), supports up to 8 GB on-board DDR3 SDRAM

• 32 MB (16-bit) NOR flash memory

• 32 MB SLC NAND flash memory

• 256 KB I2C EEPROM

• 128 MB SPI flash

• SD/MMC connector to interface with the SD memory card

PCI Express

• One standard PCI Express connector

• One mini PCI Express connector

SATA P1010NSN5HHB

• One internal SATA connected to 2.5” 160 G SATA 2 HDD

• One eSATA connector to rear panel

UART

• DUART interface, terminated as RJ45 connectors

TDM

• Two FXS ports connected via na external SLIC to the TDM interface

• One FXO port connected via a relay to FXS for switchover to POTS

Others P1010NSN5HHB

• LEDs: Power (green), link (green), activities (yellow)

• JTAG for debugging

• IEEE 1588 V2 signals for test and measurement

Form Factor

• Mini ITX form factor
