S9S12G48F0MLH

16位微控制器 - MCU 16Bit 48KFlash 4096RAM MSCAN

Introduction S9S12G48F0MLH

The MC9S12G-Family is an optimized, automotive, 16-bit microcontroller product line focused on

low-cost, high-performance, and low pin-count. This family is intended to bridge between high-end 8-bit

microcontrollers and high-performance 16-bit microcontrollers, such as the MC9S12XS-Family.

Features S9S12G48F0MLH

This section describes the key features of the MC9S12G-Family.

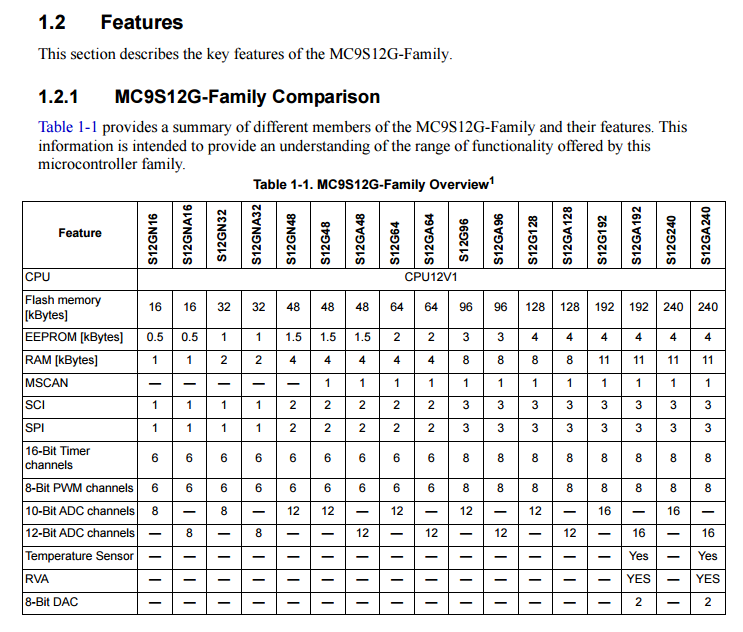

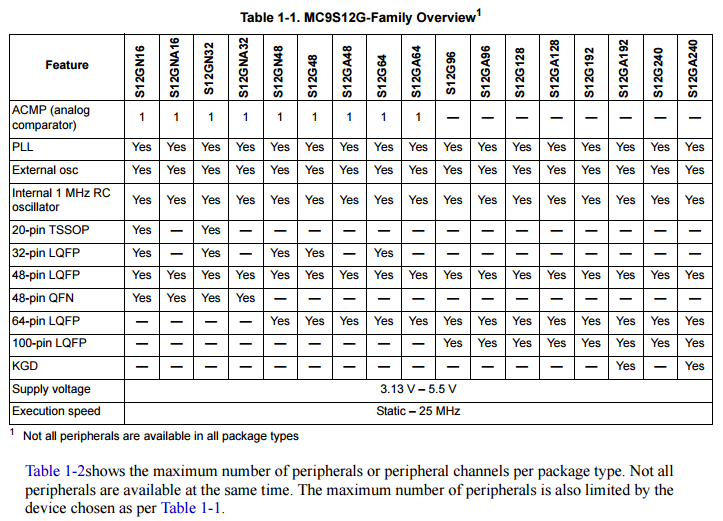

S9S12G48F0MLH-Family Comparison

provides a summary of different members of the MC9S12G-Family and their features. This

information is intended to provide an understanding of the range of functionality offered by this

microcontroller family.

Chip-Level Features

On-chip modules available within the family include the following features:

• S12 CPU core

• Up to 240 Kbyte on-chip flash with ECC

• Up to 4 Kbyte EEPROM with ECC

• Up to 11 Kbyte on-chip SRAM

• Phase locked loop (IPLL) frequency multiplier with internal filter

• 4–16 MHz amplitude controlled Pierce oscillator

• 1 MHz internal RC oscillator

• Timer module (TIM) supporting up to eight channels that provide a range of 16-bit input capture, output compare, counter, and pulse accumulator functions

• Pulse width modulation (PWM) module with up to eight x 8-bit channels

• Up to 16-channel, 10 or 12-bit resolution successive approximation analog-to-digital converter (ADC)
