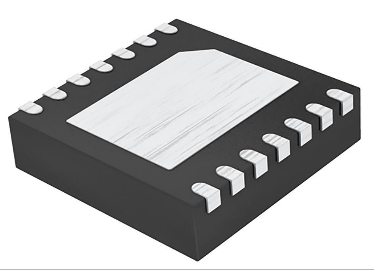

MAX17205G+T

Stand-Alone ModelGauge m5 Fuel Gauge  with SHA-256 Authentication

电池管理 ModelGauge M5 Fuel Gauge

General Description

The MAX17205G+T MAX1720x/MAX1721x are ultra-low power stand-alone fuel gauge ICs that implement the Maxim ModelGauge™ m5 algorithm without requiring host interaction for configuration. This feature makes the MAX1720x/MAX1721x excellent pack-side fuel gauges. The MAX17201/MAX17211 monitor a single cell pack. The MAX17205/MAX17215 monitor and balance a 2S or 3S pack or monitor a multiple-series cell pack.

Benefits and Features MAX17205G+T

● ModelGauge m5 Algorithm

• Eliminates Error when Approaching Empty Voltage

• Eliminates Coulomb-Counter Drift

• Current, Temperature, and Age Compensated

• Does Not Require Empty, Full, or Idle States

• No Characterization Required for EZ Performance (See the ModelGauge m5 EZ Performance Section)

• Cycle+ Age Forecasting Observes Lifespan

● Nonvolatile Memory for Stand-Alone Operation

• Learned Parameters and History Logging

• Up to 75 Words Available for User Data

● Precision Measurement System

• No Calibration Required

● Time-to-Empty and Time-to-Full Estimation

Applications MAX17205G+T

● Smartphones and Tablets

● Portable Game Players

● e-Readers

● Digital Still and Video Cameras

● Handheld Computers and Terminals

● Portable Medical Equipment

● Handheld Radios
