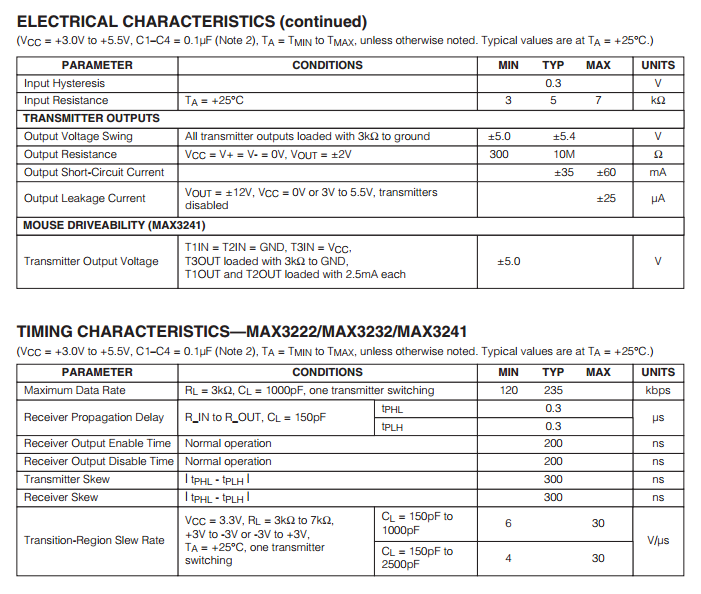

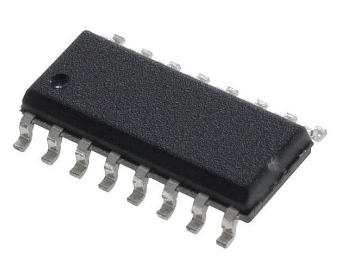

MAX3232ESE+T

3.0V to 5.5V, Low-Power, up to 1Mbps, True RS-232  Transceivers Using Four 0.1μF External Capacitors

RS-232接口集成电路 3-5.5V 235kbps Transceiver

General Description

The MAX3232ESE+T MAX3222/MAX3232/MAX3237/MAX3241 transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1μF external chargepump capacitors. The MAX3222, MAX3232, and MAX3241 are guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3237 is guaranteed to run at data rates of 250kbps in the normal operating mode and 1Mbps in the MegaBaud™ operating mode, while maintaining RS-232 output levels.

Next Generation Device Features MAX3232ESE+T

♦ For Smaller Packaging:

MAX3228E/MAX3229E: +2.5V to +5.5V RS-232

Transceivers in UCSP™

♦ For Integrated ESD Protection:

MAX3222E/MAX3232E/MAX3237E/MAX3241E*/

MAX3246E: ±15kV ESD-Protected, Down to 10nA,

3.0V to 5.5V, Up to 1Mbps, True RS-232

Transceivers

♦ For Low-Voltage or Data Cable Applications:

MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA,

2Tx/2Rx RS-232 Transceivers with ±15kV

ESD-Protected I/O and Logic Pins

Applications MAX3232ESE+T

Notebook, Subnotebook, and Palmtop Computers

High-Speed Modems

Battery-Powered Equipment

Hand-Held Equipment

Peripherals

Printers
