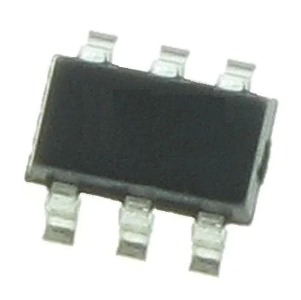

MAX4599EUT+T 模拟开关IC
60 Ohms
1 Switch
2 V to 5.5 V
571 mW
- 40 ℃
85 ℃
相关产品
产品信息
MAX4599EUT+T
Low-Voltage, Single-Supply, SPDT Analog Switch in SC70
模拟开关 IC Single-Supply SPDT Analog Switch
General Description
The MAX4599EUT+T MAX4599 single-pole/double-throw (SPDT) switch operates from a +2.0V to +5.5V single supply. It offers 60Ω max on-resistance (RON) at +5V and fast switching times (tON = 30ns max, tOFF = 25ns max).
The MAX4599 features excellent RON flatness (4Ω max) and matching (1Ω max) between channels. This device also offers 5pC max charge injection.
The MAX4599 is available in tiny 6-pin SC70, μDFN, and SOT23 packages.
Applications MAX4599EUT+T
● Battery-Operated Equipment
● Audio and Video Signal Routing
● Cellular Phones
● Low-Voltage Data-Acquisition Systems
● Sample-and-Hold Circuits
● Communications Circuits
Features MAX4599EUT+T
● Available in 6-Pin SC70 Package
● 60Ω max (40Ω typ) On-Resistance
● 1Ω max (0.2Ω typ) RON Matching Between Channels
● 4Ω max (2.5Ω typ) RON Flatness
● Fast Switching: tON = 30ns (max) tOFF = 25ns (max)
● Guaranteed 5pC max Charge Injection
● +2.0V to +5.5V Single-Supply Operation
● 200MHz -3dB Bandwidth
● Low ±0.5nA Leakage Current at +25°C
● Break-Before-Make Switching
● TTL/CMOS-Logic Compatible
● -76dB Off-Isolation at 1MHz
● 0.12% Total Harmonic Distortion
