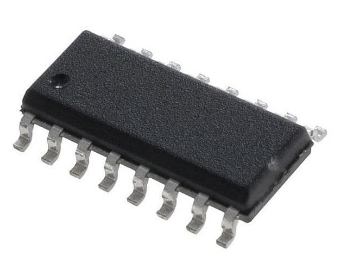

MAX4665ESE+T

模拟开关 IC 5Ohm Quad SPST Analog Switch

5Ω, Quad, SPST,  CMOS Analog Switches

General Description

The MAX4665ESE+T MAX4664/MAX4665/MAX4666 quad analog switches feature 5Ω max on-resistance. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each switch can handle Rail-to-Rail® analog signals. The off-leakage current is only 5nA max at +85°C. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or in applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays.

Features MAX4665ESE+T

♦ Low On-Resistance (5Ω max)

♦ Guaranteed RON Match Between Channels (0.5Ω max)

♦ Guaranteed RON Flatness over Specified Signal Range (0.5Ω max)

♦ Guaranteed Break-Before-Make (MAX4666)

♦ Rail-to-Rail Signal Handling

♦ Guaranteed ESD Protection > 2kV per Method 3015.7

♦ +4.5V to +36V Single-Supply Operation ±4.5V to ±20V Dual-Supply Operation

♦ TTL/CMOS-Compatible Control Inputs

Applications MAX4665ESE+T

Reed Relay Replacement

PBX, PABX Systems

Test Equipment

Audio-Signal Routing

Communication Systems

Avionics
