LD1085D2M33R 低压差稳压器
LD1085D2M33R 低压差稳压器
<>

LD1085D2M33R 低压差稳压器

型号/规格:

LD1085D2M33R

品牌/商标:

ST(意法半导体)

极性:

: Positive

静态电流:

: 10 mA

工作温度:

: - 40 C

工作温度:

: + 125 C

产品信息

LD1085D2M33R

3 A low drop positive voltage regulator: adjustable and fixed 低压差稳压器 3.3V 3.0A Positive


Description LD1085D2M33R

The LD1085D2M33R LD1085 is a low drop voltage regulator able to provide up to 3 A of output current. Dropout is guaranteed at a maximum of 1.2 V at the maximum output current, decreasing at lower loads. The LD1085 is pin-to-pin compatible with the older 3-terminal adjustable regulators, but offers better performance in terms of drop and output tolerance.


Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the LD1085 quiescent current flows into the load, thus increase efficiency. Only a 10 μF minimum capacitor is need for stability.


The device is supplied in TO-220, TO-220FP, D2PAK and D2PAK/A packages. On-chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1% at 25 °C.



Features LD1085D2M33R

• Typical dropout 1.3 V (at 3 A)

• Three terminal adjustable or fixed output

voltage 1.8 V, 2.5 V, 3.3 V, 5 V

• Guaranteed output current up to 3 A

• Output tolerance ± 1% at 25 °C and ± 2% in full

temperature range

• Internal power and thermal limit

• Wide operating temperature range -40 °C to 125 °C

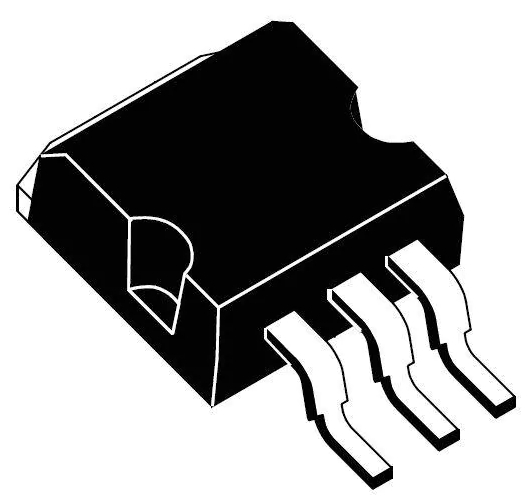

• Package available: TO-220, TO-220FP,

D2PAK, D2PAK/A

• Pinout compatibility with standard adjustable VREG
